Little Bits of Artificial Intelligence

1. What is Backpropagation?

It’s the process a neural network uses to learn from its mistakes by adjusting the weights after checking the error in its predictions.

When There Are Multiple Neurons…

Imagine we have:

• 2 input neurons (for features)
• 2 hidden neurons (in one hidden layer)
• 1 output neuron

2. Step-by-Step Flow (Backpropagation):

1. Forward Pass
   • Compute weighted sums at hidden layer:


     h1 = w1*x1 + w2*x2 + b1, then apply activation
     h2 = w3*x1 + w4*x2 + b2, then apply activation

   • Compute output:


     y_pred = w5*h1 + w6*h2 + b3, then apply activation

2. Calculate Error
   • Error = difference between predicted output (y_pred) and actual output (y_actual)
     Example:

     error = (y_pred – y_actual)^2

3. Backward Pass
   • Calculate the gradient of the error w.r.t output weights (w5, w6)
   • Then go one layer back and calculate gradient w.r.t hidden weights (w1 to w4)
   • Use chain rule to pass the error backwards through each neuron
4. Update Weights
   • Adjust each weight:


     weight = weight – learning_rate * gradient

Why Do We Do This?

• So the next time the same input is seen, the network makes a better prediction by reducing error.

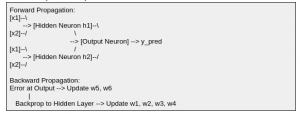

Visual Chart (Text Version)

Analogy:

Think of it like baking a cake and someone says it’s too sweet.

• We figure out it’s because of too much sugar (w5).
• Then we realize that sugar came from both frosting (h1) and batter (h2).
• Next time, we adjust sugar in both parts to fix the problem → This is backpropagation!
